AIR-SOURCE MODULAR CHILLERS

Chillers (UAC)

2-Pipe, Low GWP Series

Air-Source Modular Chillers: Chillers (UAC) - 2-Pipe, Low GWP Series - size 30 shown

AIR-SOURCE MODULAR CHILLERS

Chillers (UAC)

2-Pipe, Low GWP Series

Air-Source Modular Chillers: Chillers (UAC) - 2-Pipe, Low GWP Series - size 30 shown

The ultimate in design flexibility with back-to-back and end-to-end configurations. This flexibility allows the combination of tonnages to obtain a specific project turndown for the required bank capacity. The packaged air-source equipment offers a minimum efficiency of 10.0 EER at full load, exceeding ASHRAE 90.1 minimum requirements. These units provide low operating noise levels with high-efficiency, variable-speed EC condenser fans that include integral head pressure control.

  • Tonnages: 20, 30, 50, 60
  • Configurations: 20 to 720 tons per bank
  • Voltages: 208, 230, 460, 575
  • Dual refrigeration circuits for operational redundancy

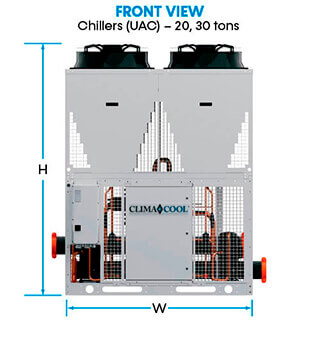

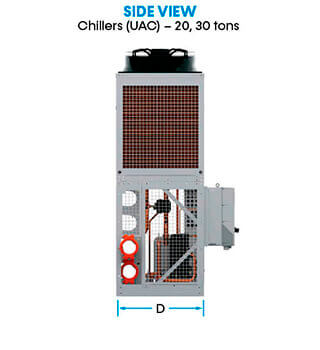

  • 20, 30 tons:
    • Width: 83.75"
    • Height: 112.46"
    • Depth: 39.75"
  • 50, 60 tons:
    • Width: 83.75"
    • Height: 112.46"
    • Depth: 80.5"

Additional LIterature

Pre-Start Checklist Form - Coming Soon

Startup and Warranty Registration Form - Coming Soon
