AIR-SOURCE MODULAR CHILLERS

Free Cooling (UCF)

2-Pipe, R-410A Series

Air-Source Modular Chillers: Free Cooling (UCF) - 2-Pipe, R-410A Series

AIR-SOURCE MODULAR CHILLERS

Free Cooling (UCF)

2-Pipe, R-410A Series

Air-Source Modular Chillers: Free Cooling (UCF) - 2-Pipe, R-410A Series

Directly coupled to packaged air cooled chiller bank. Includes glycol free cooling coils, high efficiency, variable speed EC condenser fans with integral head pressure control and acoustical design providing low operating noise levels, two position motorized water isolation valve, 3-way bypass valves and fully integrated controls.

  • Tonnages: 30, 70
  • Voltages: 208, 230, 460, 575
  • 30 tons:
    • Width: 83.75"
    • Height: 84"
    • Depth: 39.75"

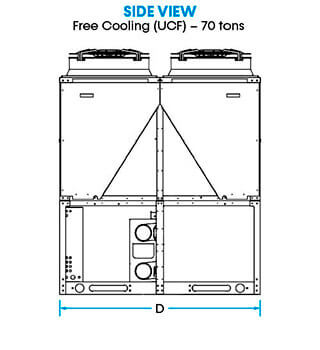

  • 70 tons:
    • Width: 83.75"
    • Height: 99.125"
    • Depth: 80.5"
