AIR-SOURCE MODULAR CHILLERS

Remote Air-Cooled (UCR)

2-Pipe, R-410A Series

Air-Source Modular Chillers: Remote Air-Cooled (UCR) - 2-Pipe, R-410A Series

AIR-SOURCE MODULAR CHILLERS

Remote Air-Cooled (UCR)

2-Pipe, R-410A Series

Air-Source Modular Chillers: Remote Air-Cooled (UCR) - 2-Pipe, R-410A Series

Each module is designed to be field piped to a matching remote air cooled or evaporative condenser and eliminates the need for a cooling tower. This helps preserve space as well as lowering building water usage and treatment needs. Design offers efficiencies up to 10.9 EER at full-load and up to 17.5 EER at part-load (IPLV) exceeding ASHRAE 90.1 minimum efficiency requirements.

  • Tonnages: 30, 50, 70
  • Configurations: 30 to 400 tons per bank
  • Voltages: 208, 230, 460, 575

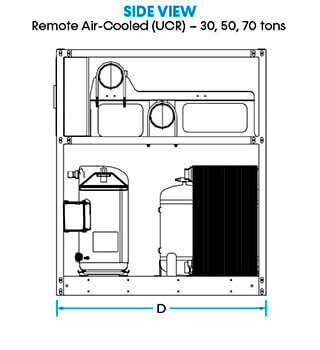

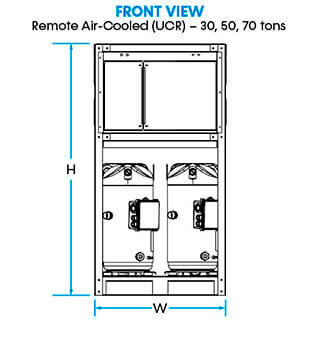

  • 30, 50, 70 tons:
    • Width: 34.25"
    • Height: 65.125"
    • Depth: 55.5"
