AIR-SOURCE MODULAR CHILLERS

Simultaneous Heating & Cooling Heat Pumps (UAU)

4-Pipe, Low GWP Series

Air-Source Modular Chillers: Simultaneous Heating & Cooling (SHC) Heat Pumps (UAU) - 4-Pipe, Low GWP Series - size 30 shown

AIR-SOURCE MODULAR CHILLERS

Simultaneous Heating & Cooling Heat Pumps (UAU)

4-Pipe, Low GWP Series

Air-Source Modular Chillers: Simultaneous Heating & Cooling (SHC) Heat Pumps (UAU) - 4-Pipe, Low GWP Series - size 30 shown

Reduce energy consumption and the environmental impact of your heating and cooling equipment by harnessing energy that is already being produced but not used. This includes high-efficiency, variable-speed EC condenser fans with integral head pressure control and an acoustical design that provides low operating noise levels. The packaged air-cooled SHC onDEMAND® provides hot water as high as 140°F (60°C) while offering a minimum cooling efficiency of 10.0 EER and typical heating efficiencies around 3.0 COP.

  • Tonnages: 20, 30, 50, 60
  • Configurations: 20 to 720 tons per bank
  • Voltages: 208, 230, 460, 575
  • Dual refrigeration circuits for operational redundancy
  • Redesigned cabinet to allow for back-to-back installation

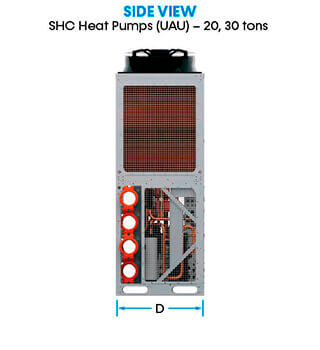

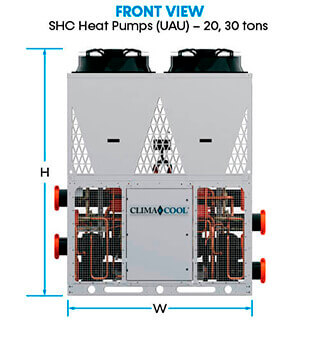

  • 20, 30 tons:
    • Width: 83.75"
    • Height: 112.46"
    • Depth: 39.75"

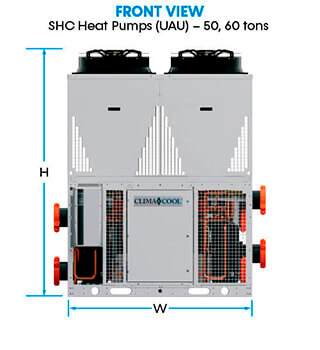

  • 50, 60 tons:
    • Width: 83.75"
    • Height: 112.46"
    • Depth: 80.5"

Additional LIterature

Pre-Start Checklist Form - Coming Soon

Startup and Warranty Registration Form - Coming Soon
