WATER-SOURCE MODULAR CHILLERS

Chillers (UWC)

4-Pipe, Low GWP Series

Water-Source Modular Chillers: Chillers (UWC) - 4-Pipe, Low GWP Series - size 30 shown

WATER-SOURCE MODULAR CHILLERS

Chillers (UWC)

4-Pipe, Low GWP Series

Water-Source Modular Chillers: Chillers (UWC) - 4-Pipe, Low GWP Series - size 30 shown

Designed for major application flexibility and expandability, this system grows with your requirements and offers a simple design for easy initial and future installation. It achieves efficiencies up to 16.3 EER at full load and up to 21.3 EER at part load (IPLV), exceeding ASHRAE 90.1 minimum efficiency requirements.

  • Tonnages: 30, 50, 60, 80
  • Configurations: 30 to 960 tons per bank
  • Voltages: 208, 230, 460, 575
  • Dual refrigeration circuits for operational redundancy

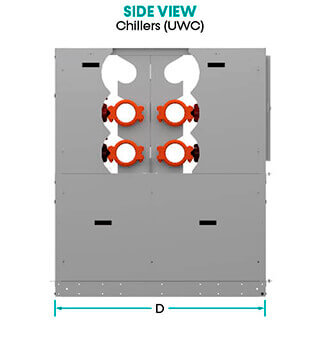

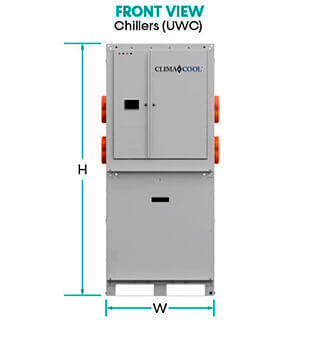

  • 30, 50, 70 tons:
    • Width: 34.25"
    • Height: 79.05"
    • Depth: 66.92"
  • 80 tons:
    • Width: 34.25"
    • Height: 84.05"
    • Depth: 66.92"

Additional LIterature

Pre-Start Checklist Form - Coming Soon

Startup and Warranty Registration Form - Coming Soon
