WATER-SOURCE MODULAR CHILLERS
Chillers (PWH)
Heat Recovery Water-Source Modular Series
WATER-SOURCE CHILLERS:
- Overview

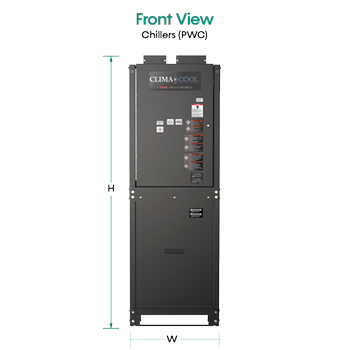

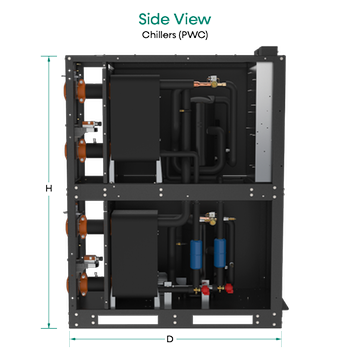

- Dimensions
- Literature

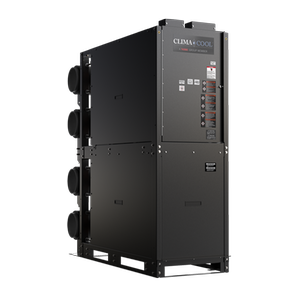

The PWH is the heat recovery configuration of ClimaCool’s PW Series, designed to deliver simultaneous heating and cooling within a single integrated system. By capturing and repurposing heat that would otherwise be rejected, the PWH improves overall system efficiency and reduces energy consumption in applications with concurrent heating and cooling demands.
Ideal for facilities such as healthcare, education, and commercial buildings, the PWH supports year-round operation with a modular design that allows capacity to be scaled and adapted over time. Its compact footprint, integrated digital controls with BMS compatibility, and service-friendly configuration enable reliable performance, simplified maintenance, and long-term operational flexibility.
Key Specifications (PWH)
- Application: Heat recovery
- Available tonnages (per module): 30, 50, 65, 80 tons
- System capacity range: Up to 960 tons per bank
- Configuration: Modular system supporting multiple units per bank
- Voltage: 208/230, 460, 575
- Bank controller: Supports up to 12 modules
- Hydronic rating: 300 psi
- Controls: Digital controls with BMS integration
- Operation: Simultaneous heating and cooling via heat recovery
- Serviceability: Individual modules can be isolated and serviced without shutting down the full system
