WATER-SOURCE MODULAR CHILLERS

Heat Pumps/
Heat Recovery (UCH)

4-Pipe, R-410A Series

Water-Source Modular Chillers: Heat Pumps/Heat Recovery (UCH) - 4-Pipe, R-410A Series

WATER-SOURCE MODULAR CHILLERS

Heat Pumps/Heat Recovery (UCH)

4-Pipe, R-410A Series

Water-Source Modular Chillers: Heat Pumps/Heat Recovery (UCH) - 4-Pipe, R-410A Series

High Temperature Heat Pumps:

The high temperature heat pump utilizes a refrigerant reversing valve to provide heating and cooling operation compatible with boiler/tower and geothermal systems. The heat pump system reaches efficiencies up to 16.3 EER, exceeding ASHRAE 90.1 minimum efficiency requirements.

High Temperature Heat Recovery:

The high temperature heat recovery can be utilized for heating and cooling operations and is compatible with boiler/tower and geothermal systems. Heat recovery can provide hot water, while also producing chilled water. The heat recovery module can reach combined efficiencies of up to 25 EER.

  • Tonnages: 30, 50, 70, 85
  • Configurations: 30 to 595 tons per bank
  • Voltages: 208, 230, 460, 575

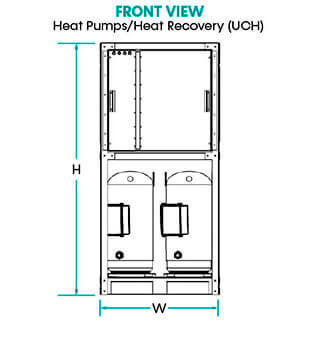

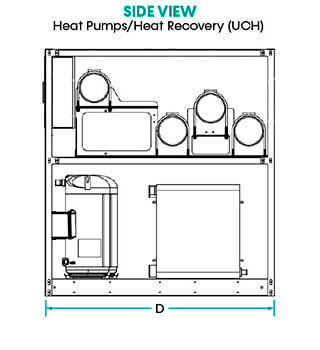

  • 30, 50, 70 tons:
    • Width: 34.25"
    • Height: 65.125"
    • Depth: 55.5"
  • 85 tons:
    • Width: 34.25"
    • Height: 72"
    • Depth: 67"
