WATER-SOURCE MODULAR CHILLERS

Heat Pumps (UWT)

4-Pipe, Low GWP Series

Water-Source Modular Chillers: Heat Pumps (UWT) - 4-Pipe, Low GWP Series - size 30 shown

WATER-SOURCE MODULAR CHILLERS

Heat Pumps (UWT)

4-Pipe, Low GWP Series

Water-Source Modular Chillers: Chillers (UWC) - 4-Pipe, Low GWP Series - size 30 shown

The high-temperature heat pump utilizes a refrigerant reversing valve to provide heating and cooling operation compatible with boiler/tower and geothermal systems. The heat pump system reaches efficiencies up to 16.3 EER, exceeding ASHRAE 90.1 minimum efficiency requirements.

  • Tonnages: 30, 50, 70, 80
  • Configurations: 30 to 960 tons per bank
  • Voltages: 208, 230, 460, 575
  • Dual refrigeration circuits for operational redundancy

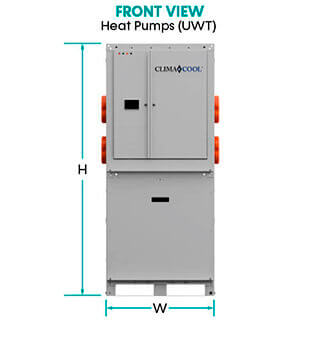

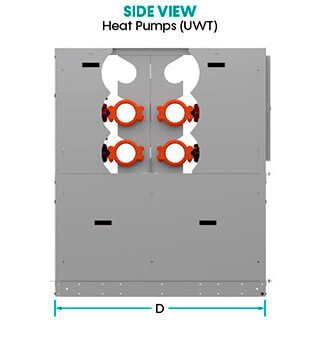

  • 30, 50, 70 tons:
    • Width: 34.25"
    • Height: 79.05"
    • Depth: 66.92"
  • 80 tons:
    • Width: 34.25"
    • Height: 84.05"
    • Depth: 66.92"
