WATER-SOURCE MODULAR CHILLERS

SHC Heat Pumps & SHC Heat Recovery (UCH)

6-Pipe, R-410A Series

Water-Source Modular Chillers: 6-Pipe, Simultaneous Heating & Cooling (SHC) Heat Pump and SHC Heat Recovery (UHC) - R-410A Series

WATER-SOURCE MODULAR CHILLERS

SHC Heat Pumps & Heat Recovery (UCH)

6-Pipe, R-410A Series

Water-Source Modular Chillers: 6-Pipe, Simultaneous Heating & Cooling (SHC) Heat Pump and SHC Heat Recovery (UHC) - R-410A Series

Simultaneous Heating and Cooling (SHC) units can achieve cooling efficiencies up to 25 EER and heating efficiencies up to 5 COP to potentially lower system energy costs by more than 50% when compared to traditional boiler/chiller systems. Each module can be indexed for heating and/or cooling onDEMAND® regardless of its position in the bank, to precisely match building loads and provide optimum module/ compressor run time equalization. Piping connection flexibility for hot, cold and source water loops allows same or opposite end configurations based on mechanical room needs.

  • Tonnages: 15, 30, 50, 70, 85
  • Configurations: 15 to 595 tons per bank
  • Voltages: 208, 230, 460, 575

SHC Heat Pumps:

  • 15, 30, 50, 70 tons:
    • Width: 34.25"
    • Height: 78"
    • Depth: 55.5"
  • 85 tons:
    • Width: 34.25"
    • Height: 84.875"
    • Depth: 67"

SHC Heat Recovery:

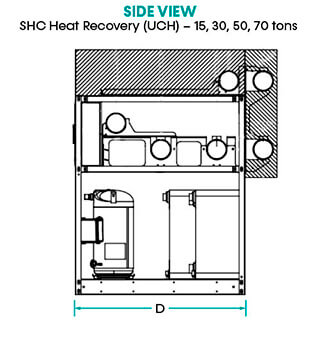

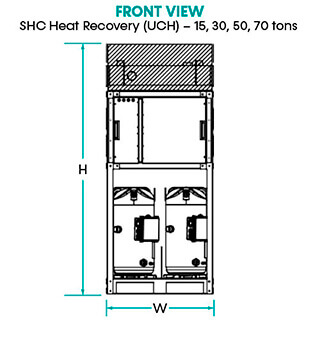

  • 15, 30, 50, 70 tons:
    • Width: 34.25"
    • Height: 80"
    • Depth: 55.5"

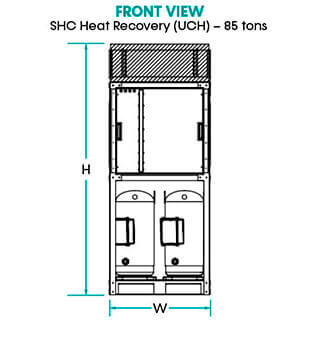

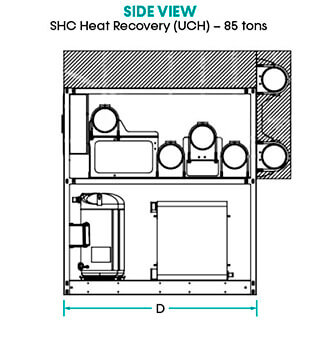

  • 85 tons:
    • Width: 34.25"
    • Height: 84.875"
    • Depth: 67"
