WATER-SOURCE MODULAR CHILLERS

Simultaneous Heating & Cooling Heat Pumps (UWU)

6-Pipe, Low GWP Series

Water-Source Modular Chillers: Simultaneous Heating & Cooling (SHC) Heat Pump (UWU) - 6-Pipe, Low GWP Series - size 30 shown

WATER-SOURCE MODULAR CHILLERS

Simultaneous Heating & Cooling Heat Pumps (UWU)

6-Pipe, Low GWP Series

Water-Source Modular Chillers: Simultaneous Heating & Cooling (SHC) Heat Pump (UWU) - 6-Pipe, Low GWP Series - size 30 shown

Simultaneous Heating and Cooling (SHC) units can achieve cooling efficiencies up to 25 EER and heating efficiencies up to 5 COP to potentially lower system energy costs by more than 50% compared to traditional boiler/chiller systems. Each module can be indexed for heating and/or cooling onDEMAND® regardless of its position in the bank, to precisely match building loads and provide optimum module/ compressor run time equalization. Piping connection flexibility for hot, cold, and source water loops allows same- or opposite-end configurations based on mechanical room needs.

  • Tonnages: 30, 50, 70, 80
  • Configurations: 30 to 960 tons per bank
  • Voltages: 208, 230, 460, 575
  • Dual refrigeration circuits for operational redundancy

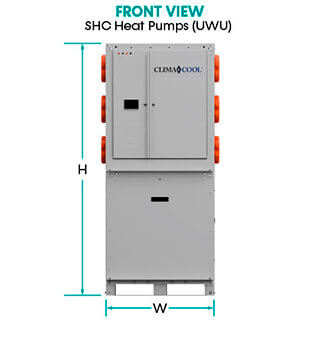

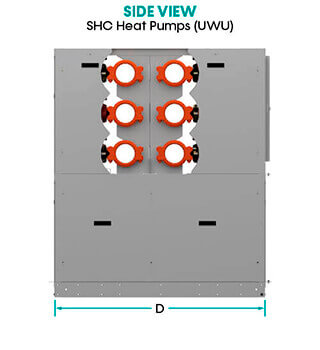

  • 30, 50, 70 tons:
    • Width: 34.25"
    • Height: 79.05"
    • Depth: 66.92"
  • 80 tons:
    • Width: 34.25"
    • Height: 84.05"
    • Depth: 66.92"

Additional LIterature

Pre-Start Checklist Form - Coming Soon

Startup and Warranty Registration Form - Coming Soon
